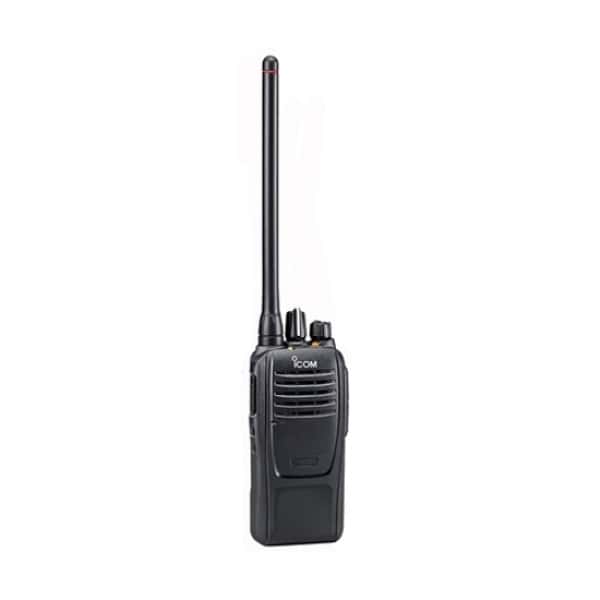

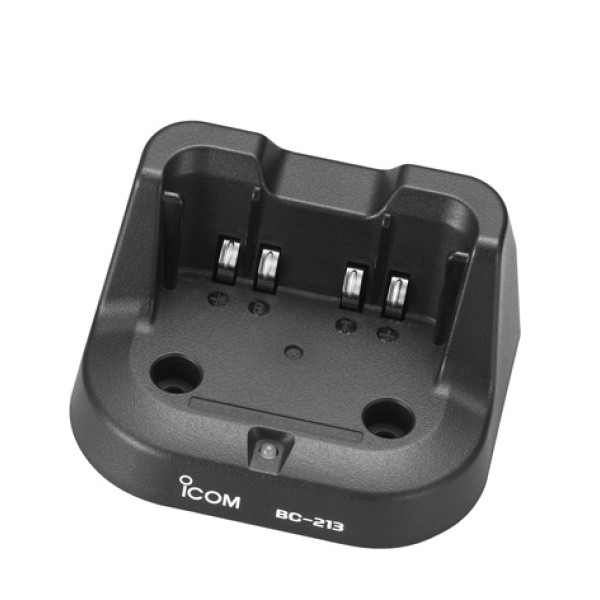

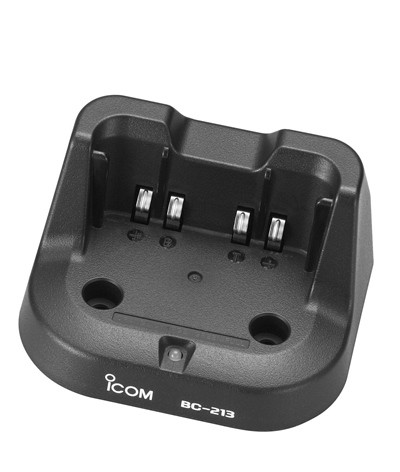

IC-F1100D NXDN VHF Inc. BP-280 Battery Pack & BC-213 Rapid Charger

IC-F1100D/F2100D Digital Two-Way Radio Series

The IC-F1100D/F2100D series is a compact, portable digital two way radio series with convenient features, intelligent emergency functions, all housed in a slim, rugged waterproof & dustproof chassis. Three versions are available in both VHF and UHF: non-display, simple keypad with LCD and full ten-keypad with LCD. A high-power handling capacity speaker and acoustic improvements provide class-leading (1500 mW) loud and clear audio. The compact easy-to-hold, dust tight and waterproof durable design with a long-lasting battery will offer reliable operation.

General Features
• IDAS 6.25kHz Digital Operation
• Three different versions of both VHF and UHF radios:

– No display – IC-F2100D (UHF)/IC-F1100D (VHF)
– Display with four keys – IC-F1100DS (VHF) /IC-F2100DS (UHF)
– Display with full DTMF keypad – IC-F1100DT (VHF) /IC-F2100DT (UHF)

• 128 Channels / 8 Zones (LCD versions only)
• 16 Channels (non-display version)
• Newly designed speaker delivers 1500 mW of high power audio
• Improved acoustic design improves sound clarity
• Compact (52.2 (W) x 111.8 (H) mm; 2.1 x 4.4 in) and lightweight
• IP67/55/54 waterproof and dust-tight protection
• Tested to 12 categories of MIL-STD-810-G environmental tests
• AquaQuake draining function clears water away from the speaker grill
• DTMF autodial memories
• 16-position rotary selector and ON/OFF volume knob
• “Shift key” function increases the number of programmable key assignments
• Up to 18 hours of operating time with supplied BP-280 battery pack (*Based on ‘Power Save’ on and a 5/5/90 duty cycle)
• Eight-character alphanumeric display (LCD versions only)
• Three colour LED

Operating Mode
• NXDN conventional
• NXDN multi-site conventional over IP network
• NXDN Type-D single-site trunking
• Analogue mode
• Analogue/digital mixed operation

Digital Functions (Voice and Data)
• AMBE+2 vocoder
• Over-the-Air Alias (OAA) displays the caller’s name without programming (for LCD types)
• Individual, Group and All call
• Late entry for Group call
• Status call and Polling
• Short data messages (for LCD types)
• Call alert
• Radio check (RX only)
• GPS position data (Optional HM-171GPW required)

Analogue Functions
• CTCSS and DTCS tone
• 2-Tone and 5-Tone
• MDC PTT ID transmission
• BIIS PTT ID transmission

Security and Safety
• Digital voice scrambler (Low-level encryption)
• Radio Stun/Revive/Kill (RX only)
• Remote monitor
• Emergency key for emergency call
• Man Down function
• Lone Worker function
• Motion and Stationary detection function
• Surveillance function temporarily turns OFF the beep and LED indicator
• Power ON password (for LCD types)

Scan Functions
• Priority scan monitors one or two priority channels while scanning non-priority channels
• Voting scan automatically selects the optimal repeater site
• Mode dependent scan automatically changes the scan list depending on the operating channel
• Power ON scan function
• Talk Back timer

Voice/Audio Functions
• Channel announcement function
• VOX function for hands-free operation
• Siren sound for security alarm
