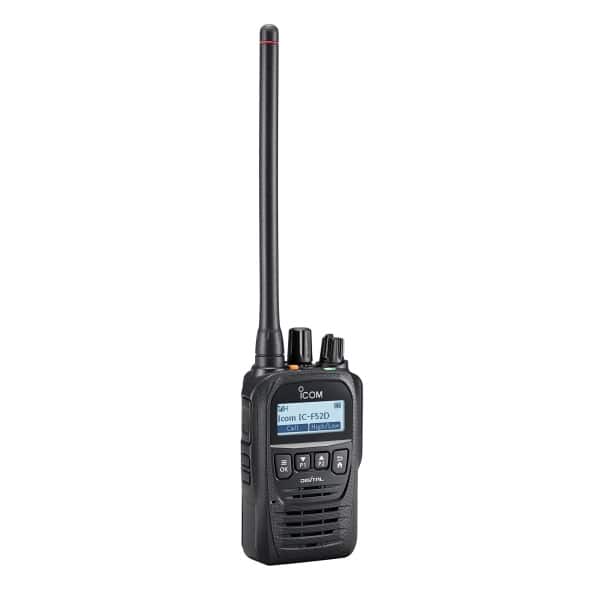

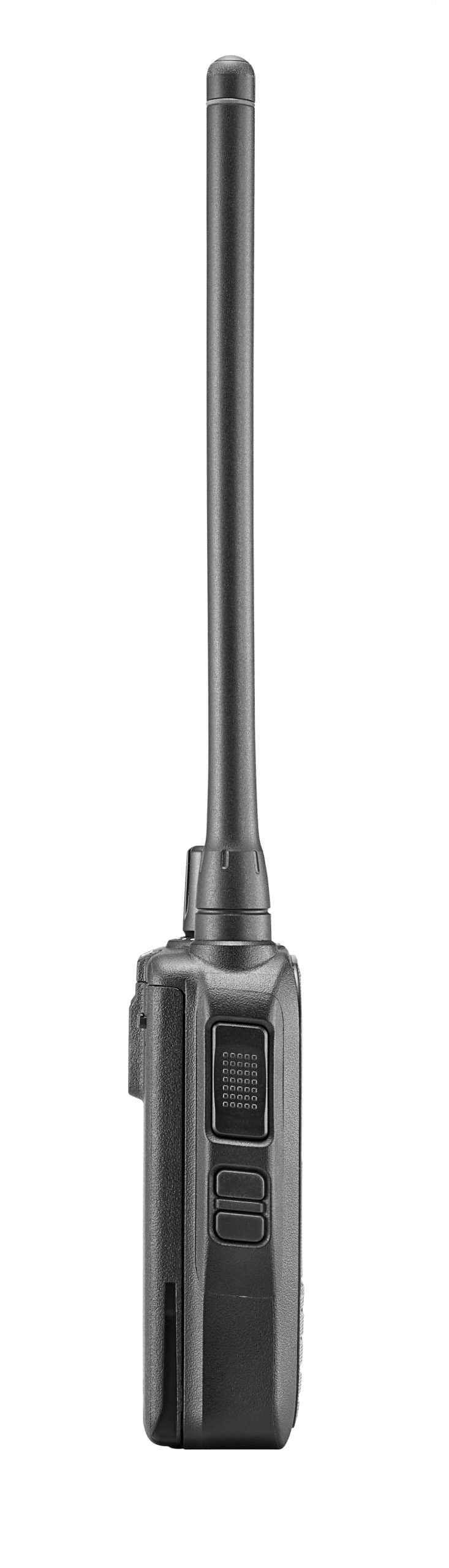

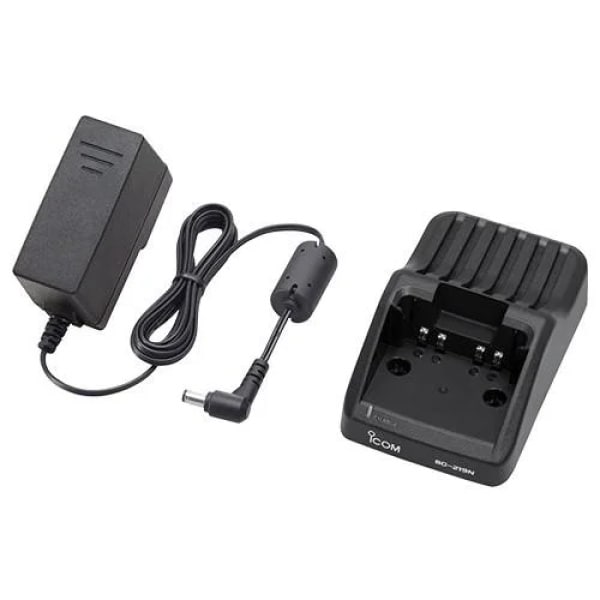

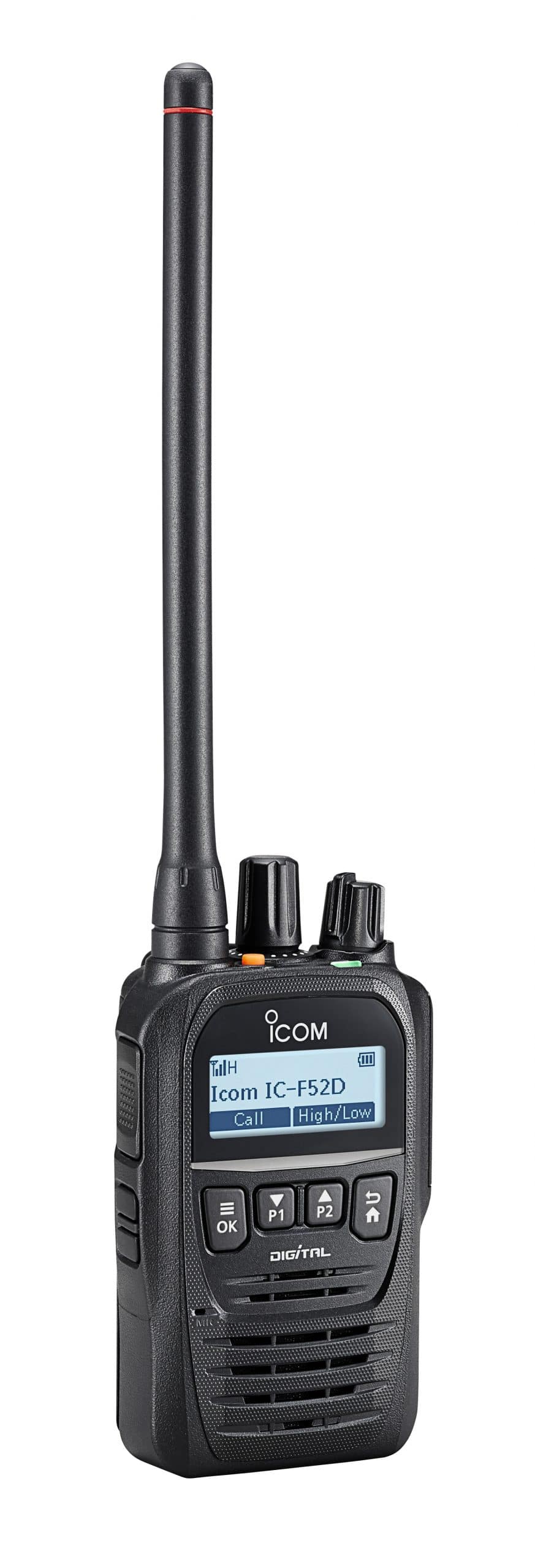

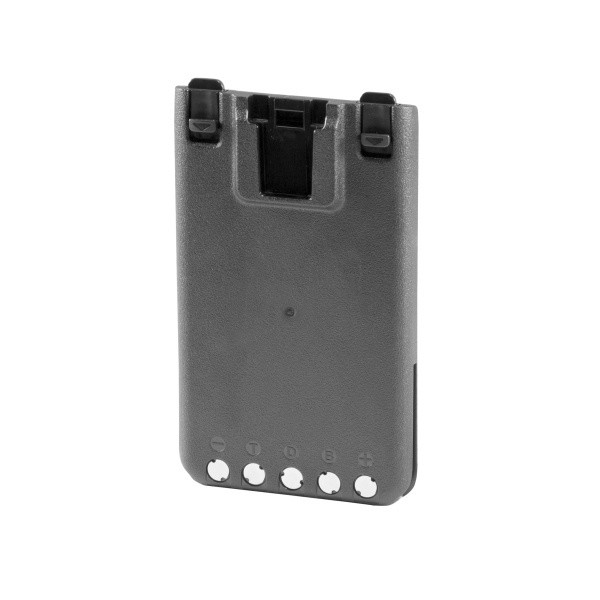

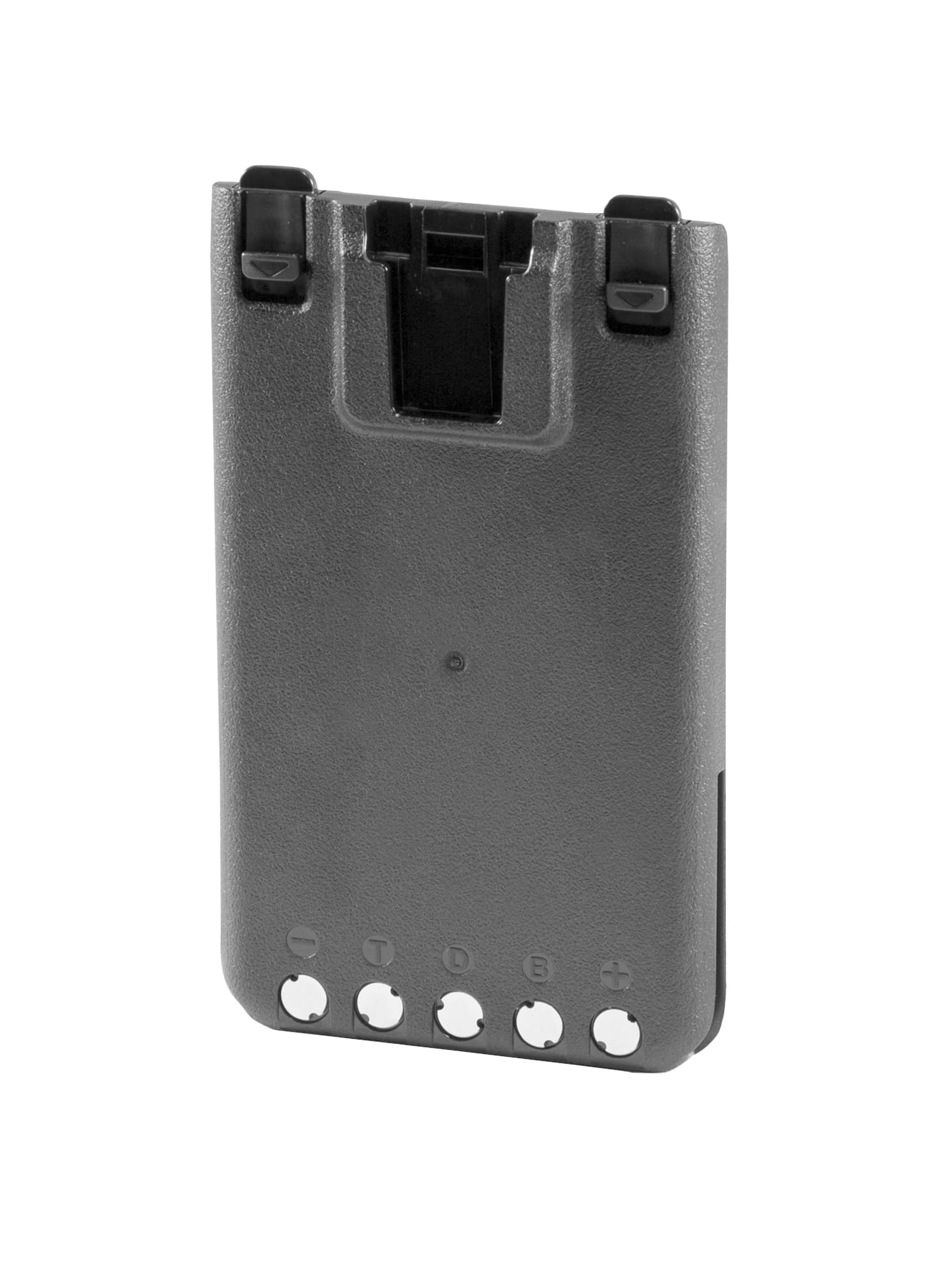

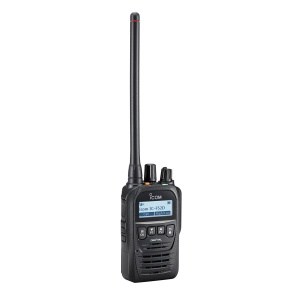

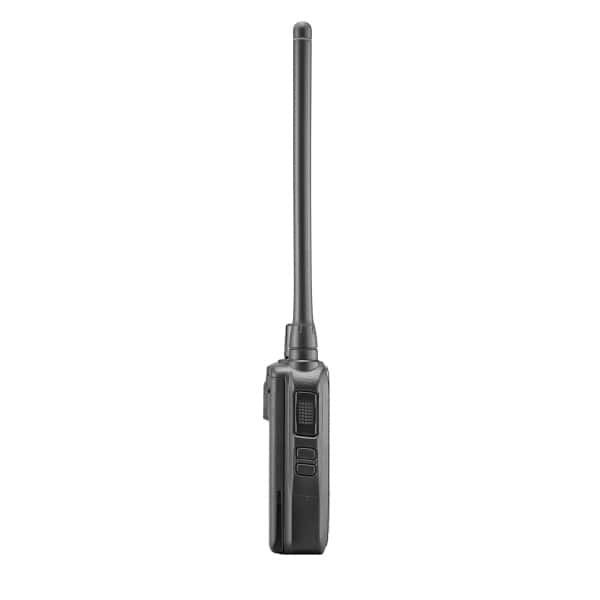

IC-F52D NXDN Waterproof VHF Inc. BP-290 Battery Pack & BC-219N Charger

SKU: F52D.012

Out of stock

General Features
• 136–174, 400–470 MHz versions
• 512 Channels / 128 Zones
• 14 dot-matrix character display with status icons
• Improved user interface
• Programmable functions
• Backlit LCD and buttons

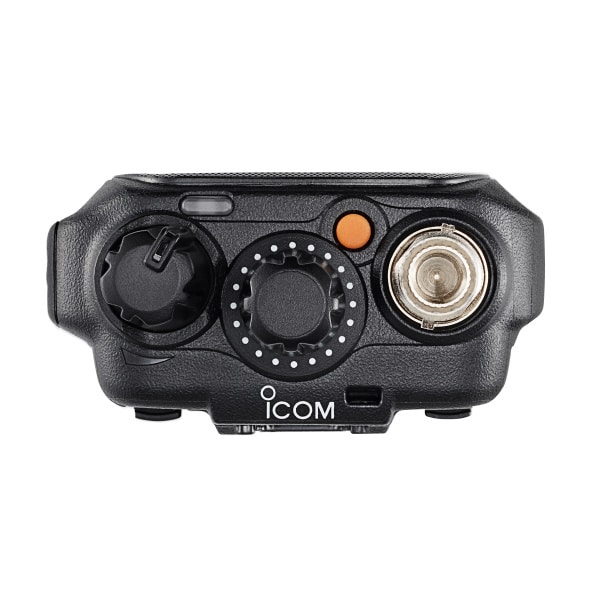

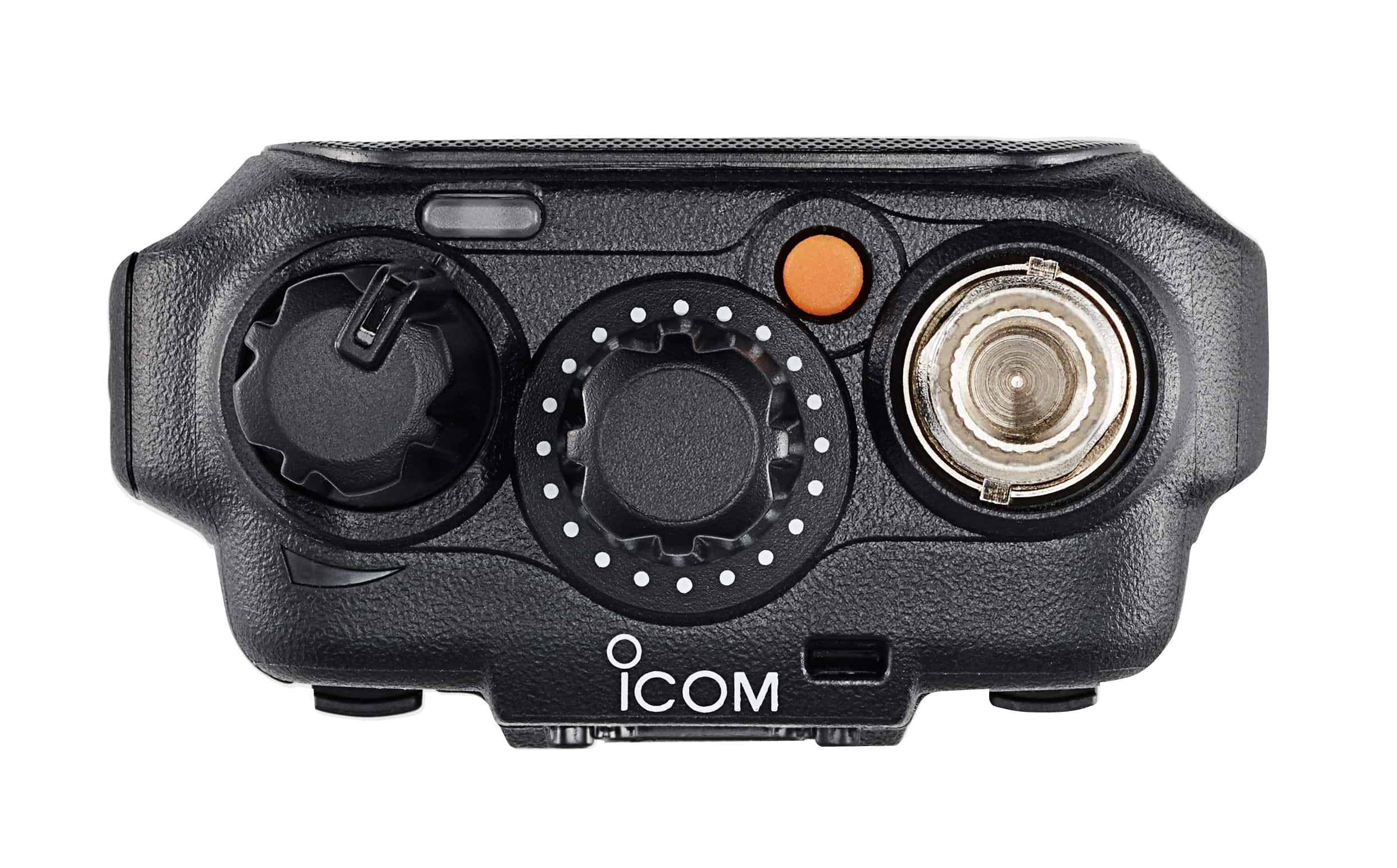

• 20-position rotary selector and ON/OFF volume knob
• 800 mW loud and intelligible internal speaker audio
• MIL-STD-810 G shock, vibration, temperature and more
• IP67/66/55/54 waterproof & dust-tight protection
• 29 mm (1.1 inches) slim dimensions (with BP-290 battery pack)
• Battery conditioning intelligence function
• Licence key upgrade (trunking)

Operating Mode
• Analogue mode
• Analogue/digital mixed operation
• NXDN or dPMR mode 1/2 conventional
• NXDN or dPMR multi-site conventional over IP network
• NXDN Type-D single/multi-site trunking (Licence key (ISL-UGMTR) required)
• dPMR Mode 3 trunking (Licence key (ISL-UGMD3) required)
• 12.5 kHz digital mode (NXDN conventional)

Digital Functions (Voice and Data)
• AMBE+2™ vocoder
• Over-the-Air-Programming (OTAP) function (Optional OTAP manager (CS-OTPM1) required)
• Over-the-Air Alias (OAA) sends own name with a call
• Over-the-Air Update (OTAU) changes repeater channel data and site code over the air (NXDN Type-D trunking)
• Individual, group and all call
• Late entry for group call
• Status call and polling
• Short data messages
• Call alert (NXDN)
• GPS position data (Optional HM-233GP required)
• Transparent data mode
Analogue Functions
• CTCSS and DTCS tone
• 5-Tone
• MDC functions (Depending on version)
• BIIS 1200 (MSK)
• LTR trunking (Depending on version)
• DTMF autodial
Security and Safety
• Digital voice scrambler (Low-level encryption)
• Analogue voice scrambler (Inversion)
• Power ON password
• Tactical group temporarily reconfigures user talk-groups
• Radio stun/revive/kill
• Remote monitor (NXDN)/ambience listening (dPMR)
• Emergency key for emergency call
• Man down function
• Lone worker function
• Motion/stationary detection
Scan Functions
• Priority scan
• Voting scan for site roaming
Voice/Audio Functions
• Voice announcement (Channel number and zone)
• VOX function for hands-free operation (Headset required)
• Voice recording/playback (Up to 8 minutes)
• TX/RX active noise canceller
• TX/RX audio equaliser
• Audio compander (Analogue mode)
Hardware Features
• Programmable vibration alert
• Built-in Bluetooth for wireless audio and data
• Variety of optional audio accessories including speaker-microphones, headsets and earphones

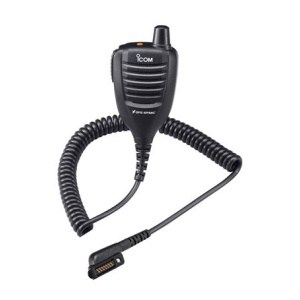

• Optional HM-233GP GPS speaker-microphone
• 14-pin accessory connector
• Wireless radio programming over Bluetooth



Product Details

  • Small, light and feature packed
  • Multiple operating modes including analogue FM, NXDN/dPMR conventional, upgradable to NXDN Type-D trunking and upgradable to dPMR Mode 3 trunking
  • Built-in Bluetooth, voice recording, active noise cancelling functions
  • Full dot-matrix display, rotary channel and volume knob for simple every-day operation
  • Motion/stationary detection, man down and lone worker functions

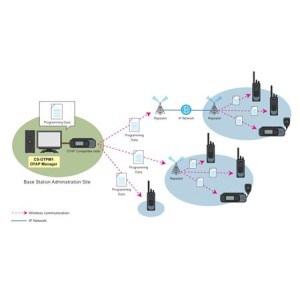

  • OTAP (Over-the-Air Programming) function quickly reconfigures radios in-the-field (Requires CS-OTPM1 Manager Software)
  • Intelligent battery management helps to extend the battery life (optional BC-225 charger required)
  • GPS position data (Optional HM-233GP required)
  • Small, light and feature packed
  • Multiple operating modes including analogue FM, NXDN/dPMR conventional, upgradable to NXDN Type-D trunking and upgradable to dPMR Mode 3 trunking
  • Built-in Bluetooth, voice recording, active noise cancelling functions
  • Full dot-matrix display, rotary channel and volume knob for simple every-day
operation
  • Motion/stationary detection, man down and lone worker functions
  • OTAP (Over-the-Air Programming) function quickly reconfigures radios in-the-field (Requires CS-OTPM1 Manager Software)
  • Intelligent battery management helps to extend the battery life (optional BC-225 charger required)
  • GPS position data (Optional HM-233GP required)

    • Specifications

    Battery Hours

    18 hours
    Channels

    512 channels
    Features

    Aquaquake, Bluetooth, Caller ID, Channel Anouncement, Emergency Button, GPS, Loan Worker, Man Down, Over-The-Air-Programming, PC Programmable, Scan, Trunking Upgrade
    Frequency Type

    VHF
    IP Rating

    IP54, IP55, IP66, IP67
    License Required

    Yes
    License Type

    Licensed
    Radio Type

    Handheld Radio
    Screen Type

    Full Dot Matrix Display
    Technology Type

    Analogue/Digital Mixed Mode Operation

    Resources

    IC-F52D Leaflet (download) IC-F52D Manual (download)
