IC-U20SR Inc. BP-304A Battery & BC-262 Rapid Charger

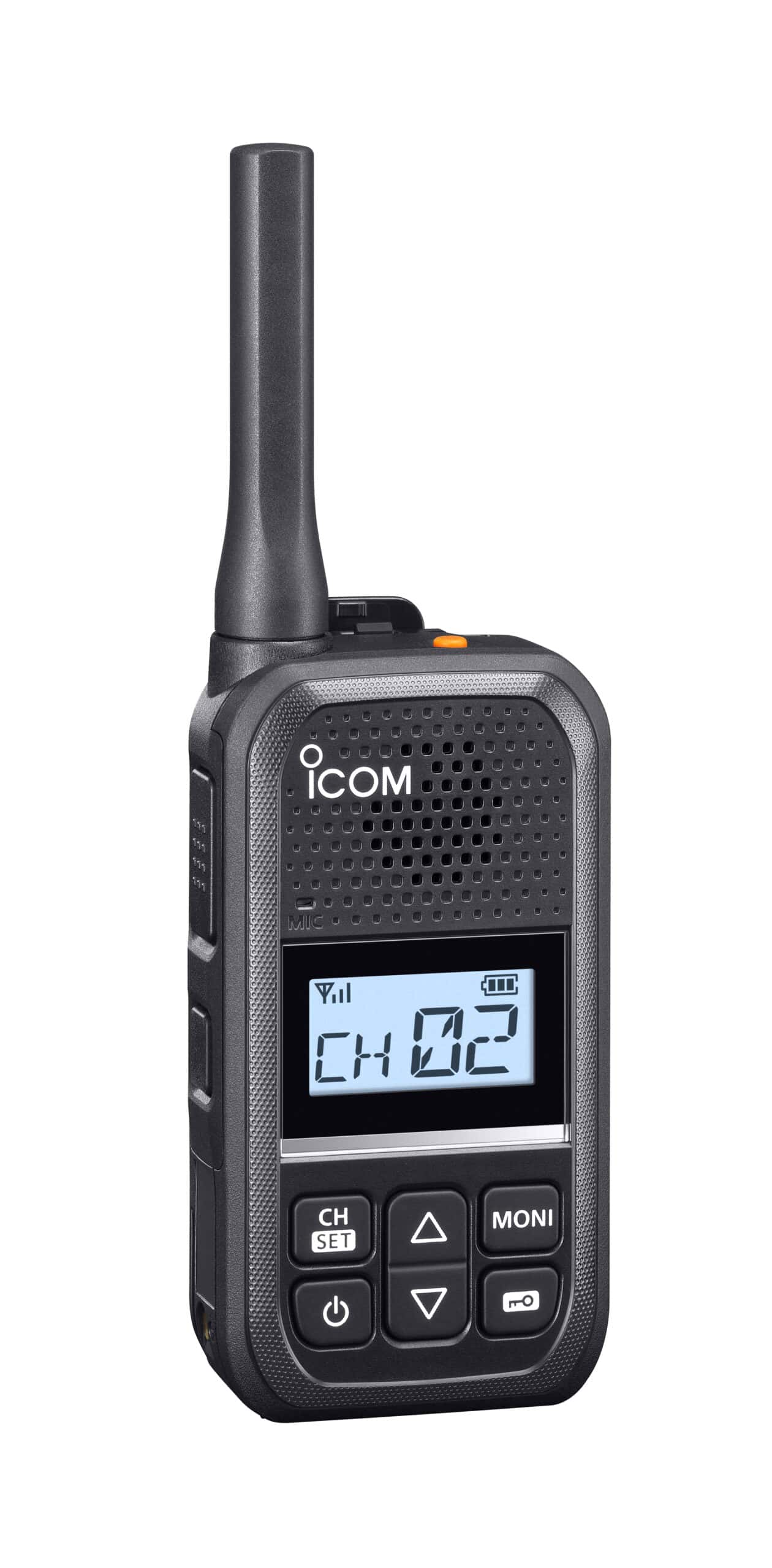

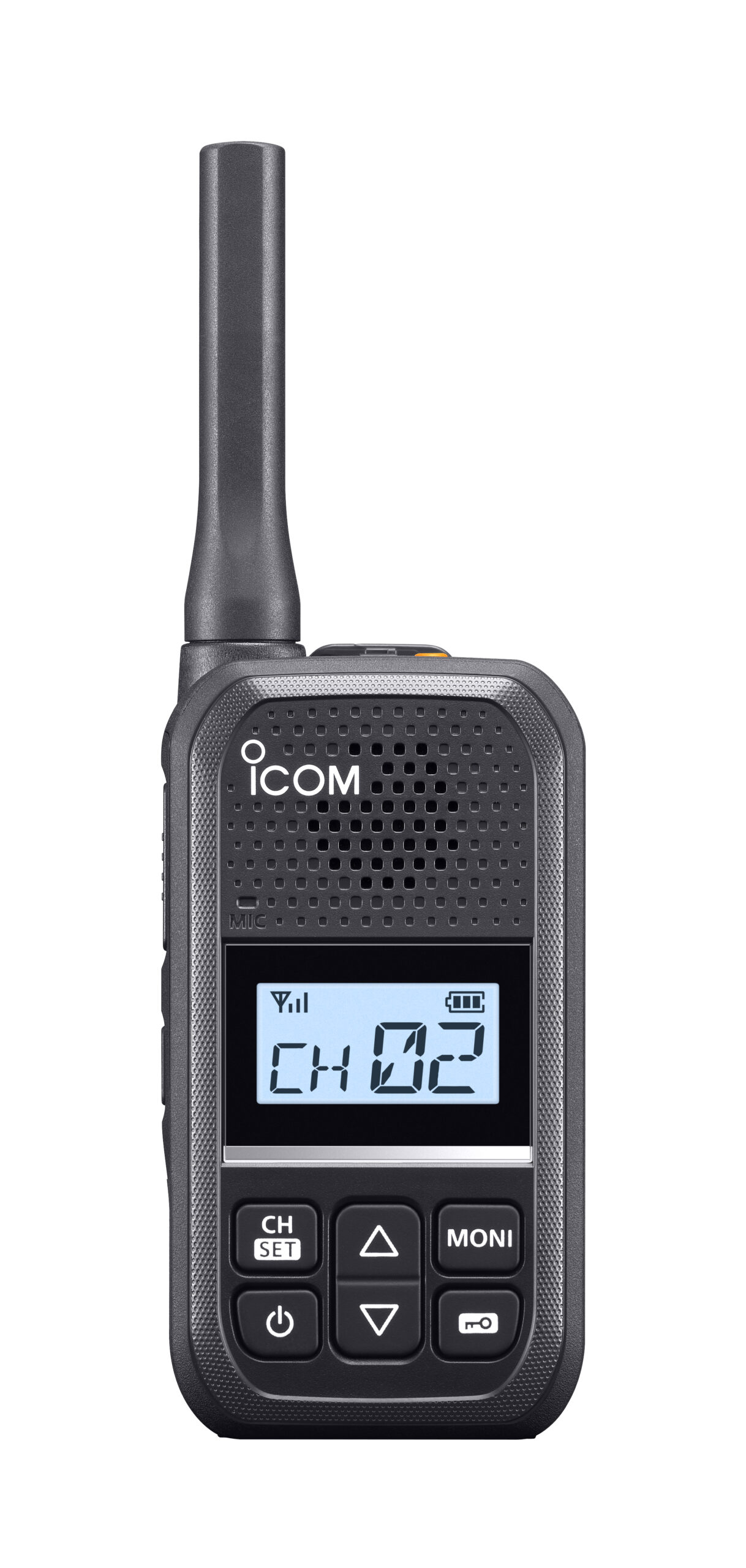

IC-U20SR Ultra Compact PMR446 Licence Free Two-Way Radio

The licence-free Icom IC-U20SR is a stylish, ultra-compact PMR446 two-way radio that effortlessly fits in the palm of your hand. Built to IP54 dust and water resistance, meeting MIL-STD810G standards, this radio combines user-friendly features, including a well-designed front panel layout with simple operation, long battery life and clear audio, all housed within a lightweight yet durable polycarbonate case.

Ultra-Compact, Smart Design

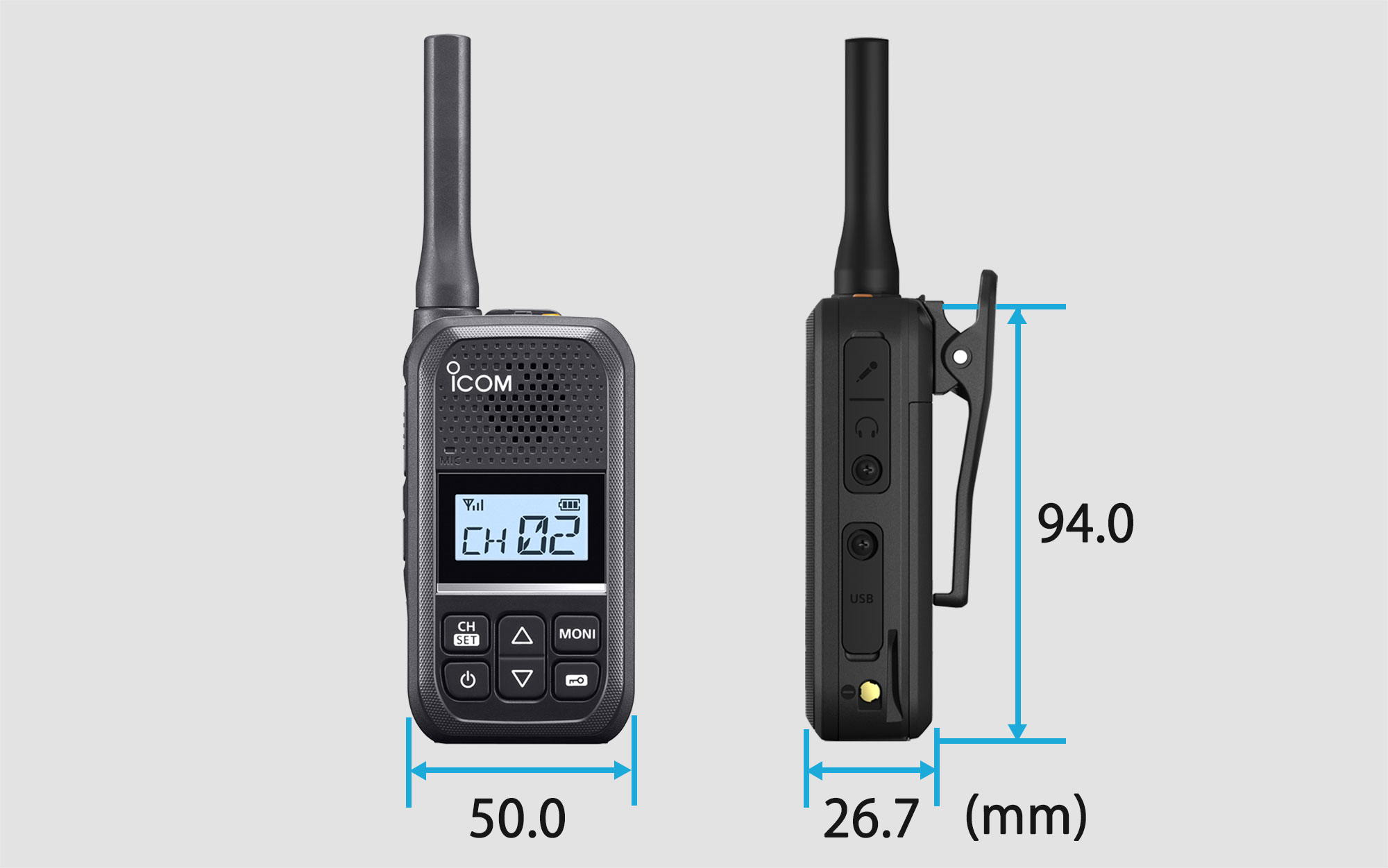

Ultra-compact, the IC-U20SR measures only 50(w)x26.7(d)x94(h) mm, so it takes up little space in your pocket or on your belt. In addition, the IC-U20SR is very light, weighing only 156 grams. It is perfect for people who work in retail, restaurants and hospitality when you need a discrete device that provides great performance.

High definition and clear LCD with 4 Digits with 14 Segments
The IC-U20SR has a large high-definition LCD screen with reinforced glass that shows you which channel you are on, the battery life, and the settings chosen clearly.

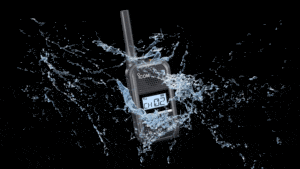

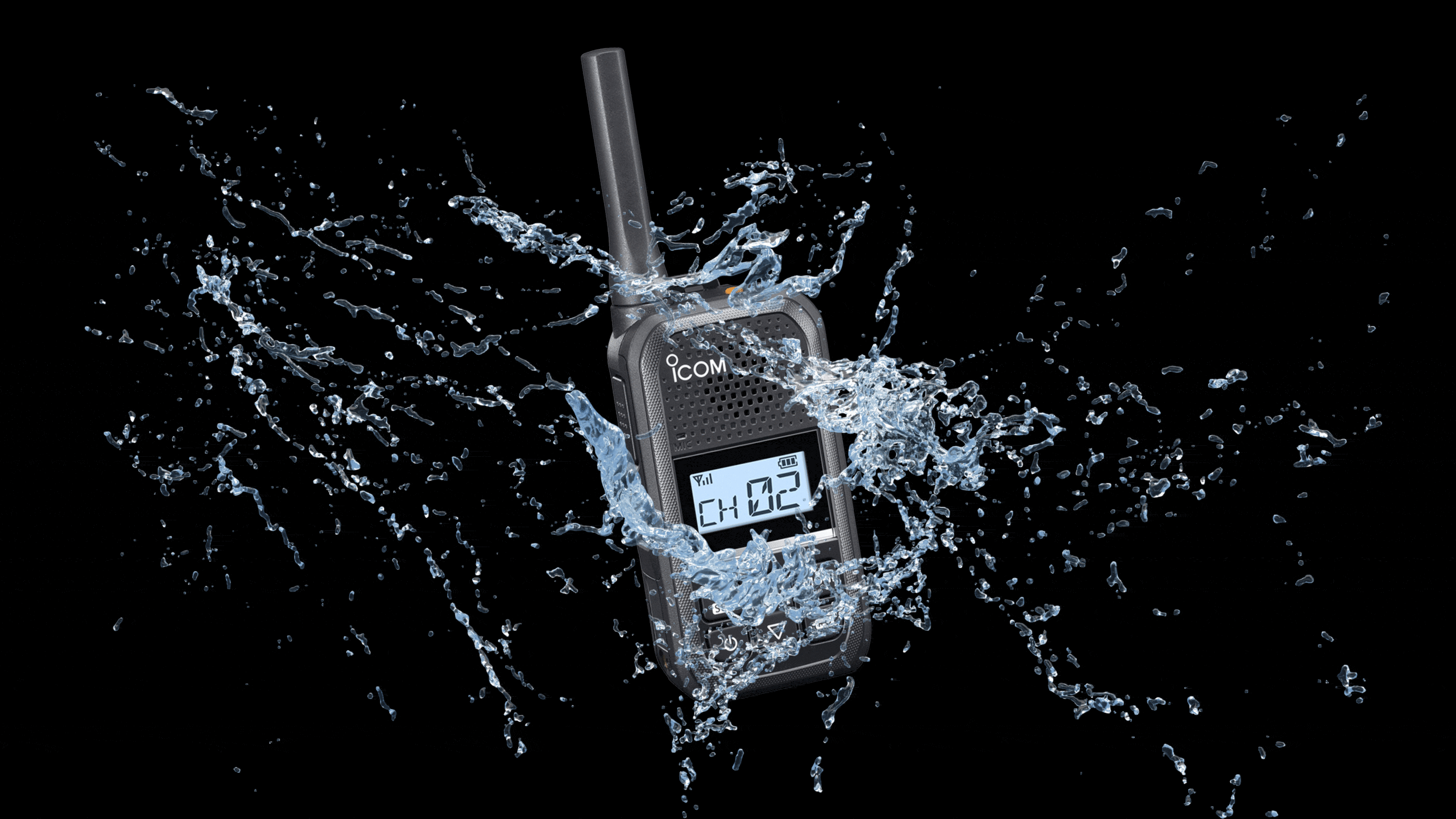

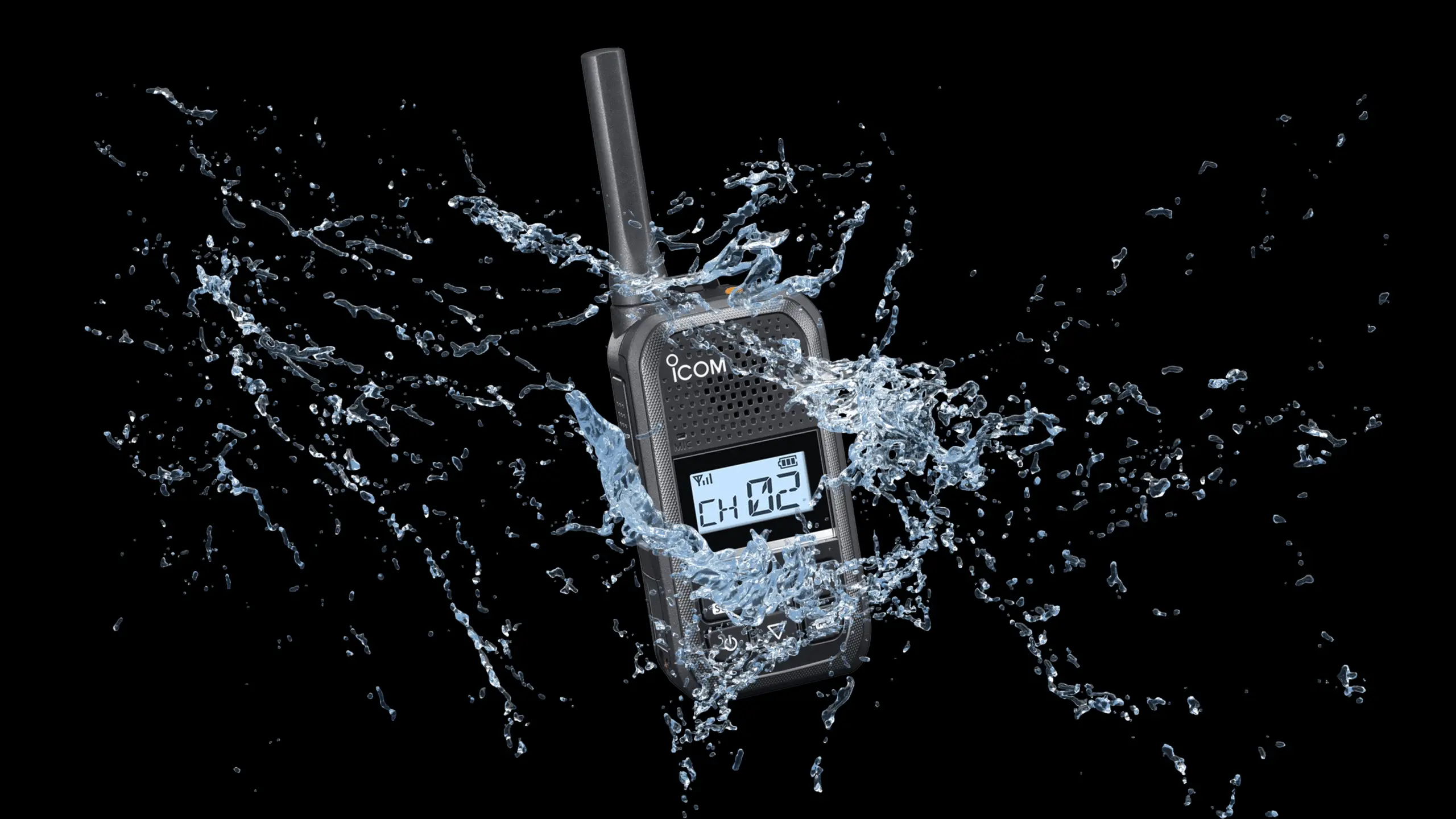

IP54 dust and Water Resistant. Meets MIL-STD810G Spec.
Waterproof to IP54 and approved by military certification MIL-STD810-G, the Icom IC-U20SR is protected against dust, water splashes and shock to withstand heavy use.

Up to 21 Hours of Operation with Supplied Battery

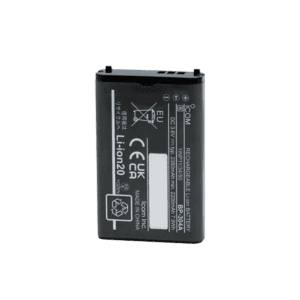

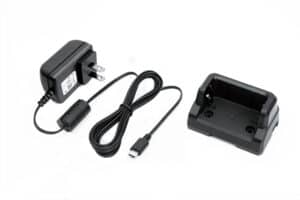

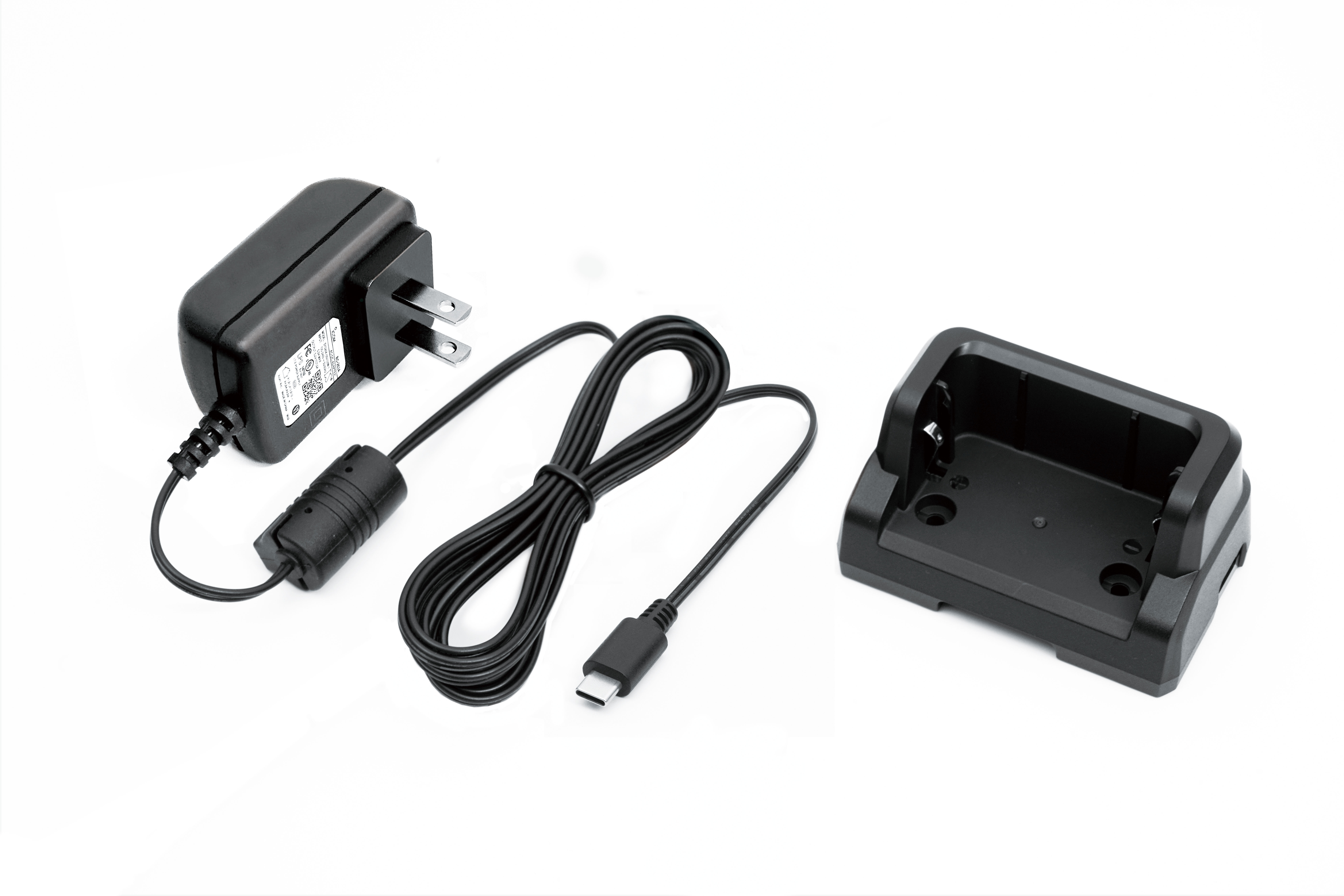

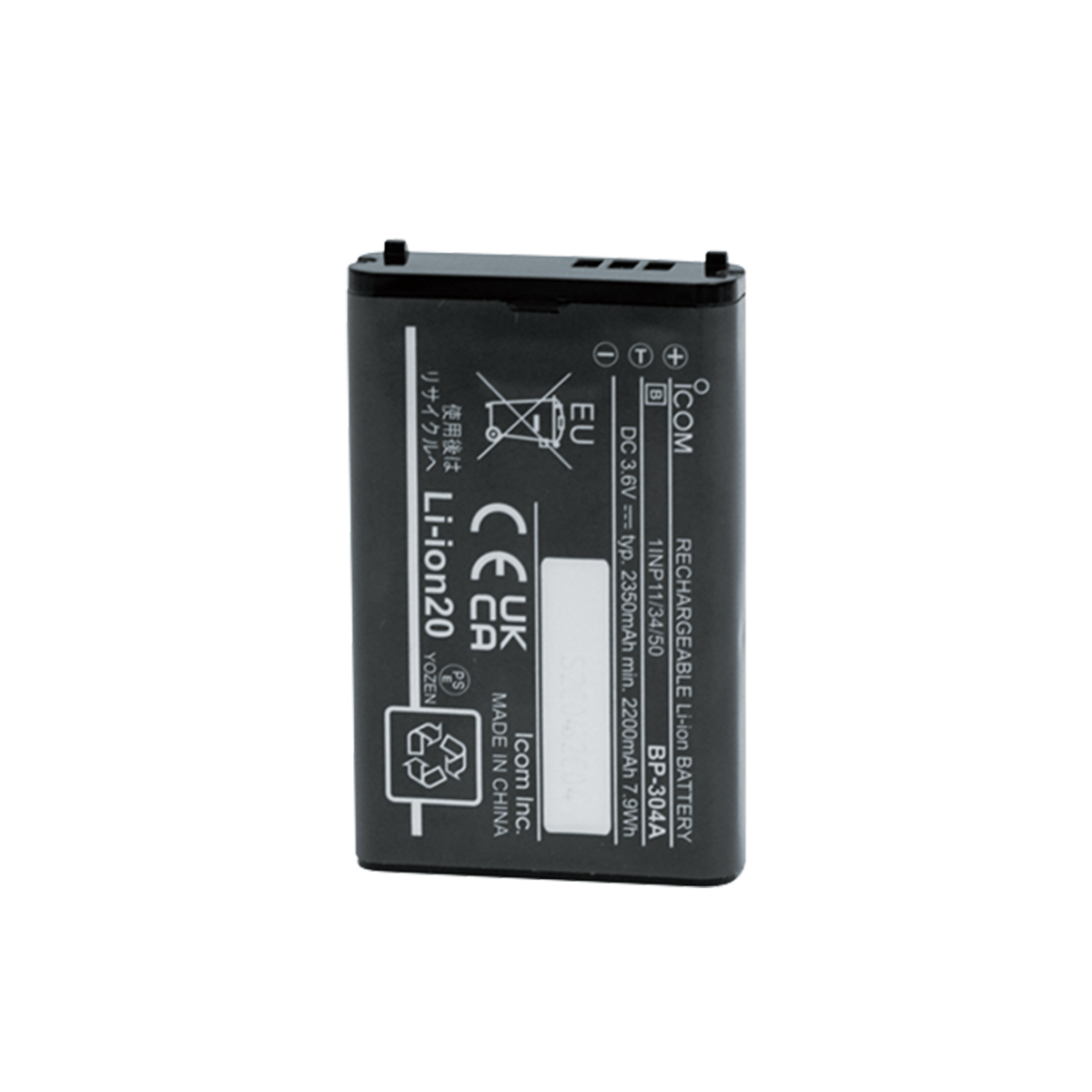

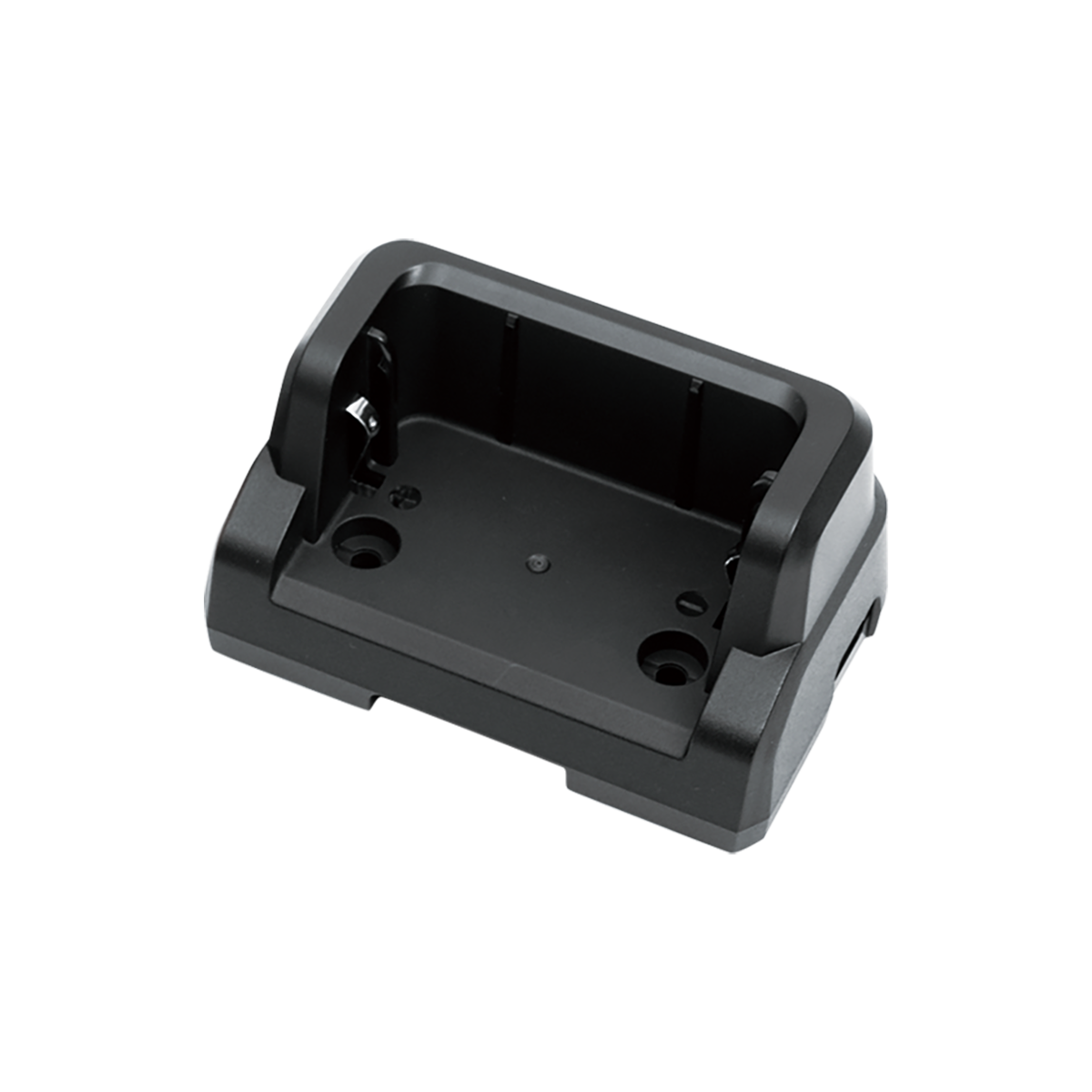

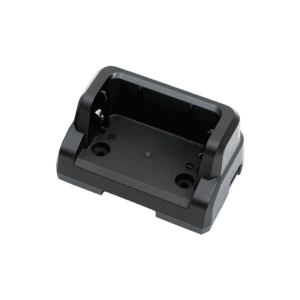

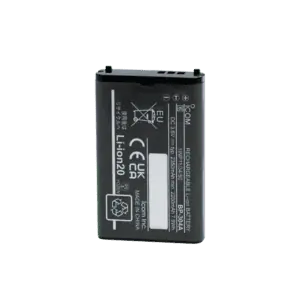

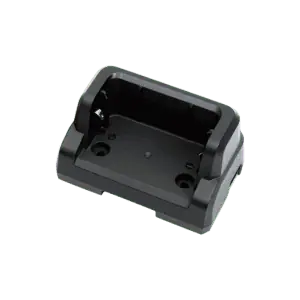

The supplied BP-304A, 2350 mAh Lithium-Ion battery can provide up to 21-hour long operation so that it can be used continuously during day and night work shifts without recharging. The BP-304A can be fully charged with the BC-262, Charging Cradle, in approximately 5 hours.

Multiple USB Charging Options

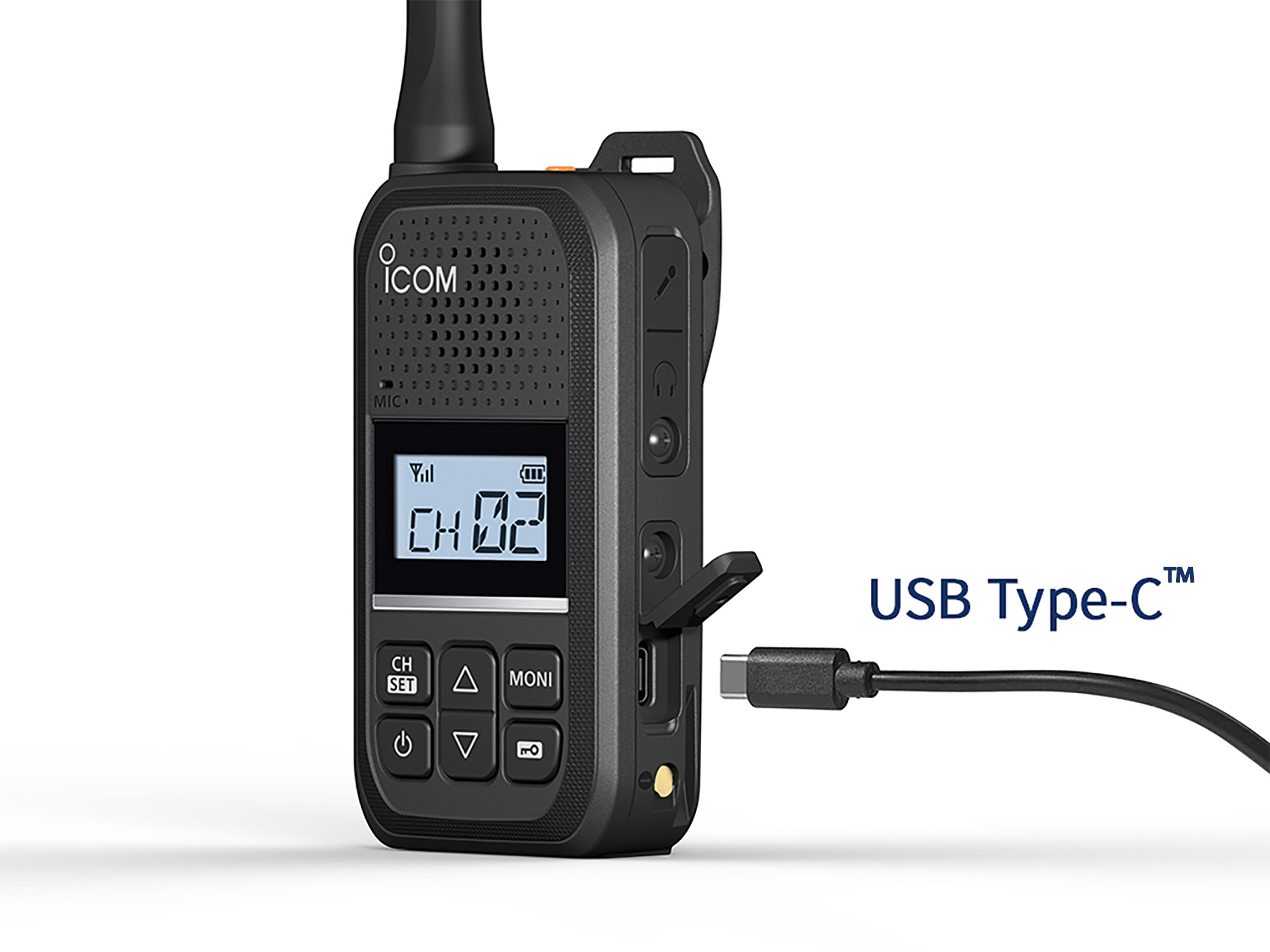

There are three different ways of charging the IC-U20SR. In addition to charging with the BC-262 charging cradle, there is a direct radio body connection charging with USB Type-C cable* and charging BP-304A with a BC-264 battery charger.
* USB Type-C™ cable is for only battery charging, with no data transfer function.

2 programmable Buttons (inc. Orange Emergency button on top of radio)
The Icom IC-U20SR radio has two programmable keys which can be reprogrammed according to your need and use. An orange emergency button is on the top of the radio that, with a long press, can send an emergency audio signal to the other devices on your agreed channel.

The second is a side button that allows the Call-Ring function to make group calls by ringing other Icom portables. Smart-ring function is also available which checks whether a group member is in range or not.

PTT from Headset and Earphone Microphone
There are a variety of headsets, microphones and earphone-microphones. The built-in VOX function provides convenient hands-free operation with the HS-94, HS-95 and HS-97 headsets when used with the OPC-2006LS VOX conversion cable.

Other Features
• CTCSS / DTCS tone squelch
• 600 mW loud and clear audio
• ‘Over-The-Air’ Programming
• VOX function for hands-free operation
