IP503H LTE/POC (4G) Inc. SIM, BP-272 Battery & BC-202IP3 Charger
Coverage Provided By Main Leading Networks

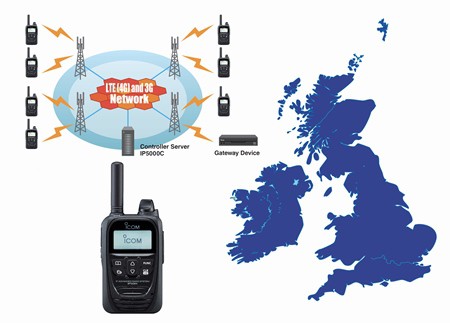

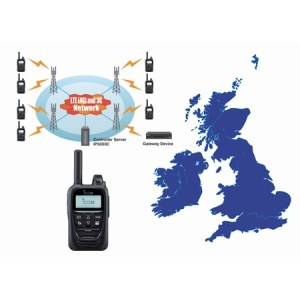

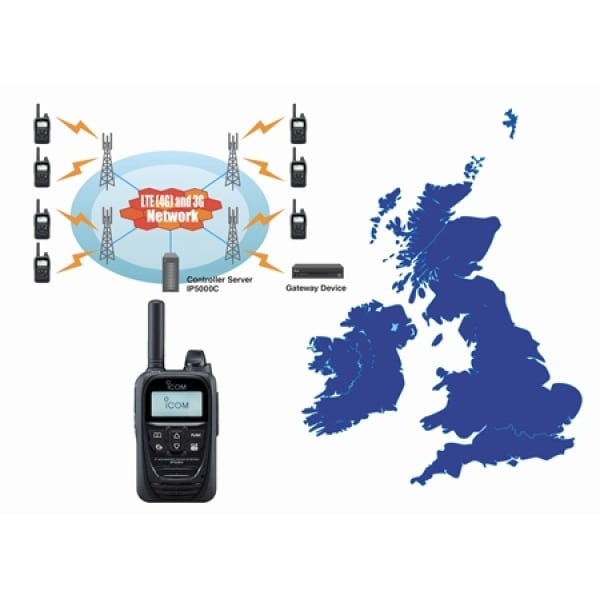

With the Icom custom SIM card, the IP503H has access to the three leading networks within the UK. So wherever you are, you will always be connected to the strongest signal in your area. The SIM card is capable of roaming throughout Europe as standard at no extra charge.
No Licence Required, Fully Secure System
The IP503H does not use the conventional radio spectrum. Coverage is provided by the 4G/LTE and 3G network so no licence application forms and no licence fees. The system is hosted on a fully secure server located in the UK.
Full-Duplex Communication
The IP503H enables use of full-duplex communication which provides smooth telephone style conversations. The IP503H users can talk and receive at the same time.
Multiple User Communication
Multiple users in the system can initiate calls respectively. There are no requirements to check or wait for channel availability.
Priority Interrupt Calling
The IP503H supports group calls with three or more people. In case of an emergency, you can break into an on-going call to transmit an important message.
Industry Leading Compact and Lightweight Body
Compact 59 × 95 × 32 mm and 240 g lightweight body* allows non-intrusive mobility and use.
*With BP-272 battery pack and antenna. Projections are not included.
IP67 Dust-Tight and Waterproof
The IP503H has waterproof performance to endure 1 m depth water for 30 minutes. It can be used for outdoor work or places prone to getting wet.
Powerful and Clear Audio
The IP503H provides an impressive 900mW of loud audio output. This provides crisp, clear audio allowing you to be heard in even the noisiest of environments.
Optional Charger Cradle with Bluetooth® Function
When the optional BC-218, charger cradle and HM-215, speaker-microphone ware used, calls can be made with the microphone, while charging the IP503H. Even when the IP503H is not dropped into the BC-218, the Bluetooth® function enables you to wirelessly use the speaker-microphone.
*Service availability depends on the country. Network coverage provided by custom ICOM SIM card.
*May not be available in some countries. Please confirm the regulations in your country before you use.
- Nationwide Coverage Over 4G/LTE Network
- Compact (95mm (H) x 59mm (W) x 26mm (D)) and lightweight (240g)
- IP67 dustproof & waterproof + MIL STD 810 G
- Vibration alert
- Full duplex communication
- Licence-Free solution
- Bluetooth functionality
- Built in GPS
- Individual and group calls in full duplex…even without the use of accessories
- Flexible monthly budgeting
- Priority interrupt
- Emergency button and emergency related features including Man Down function and lone worker function.
- 500 item address book
Product Details
Other Features:
• High quality, clear audio using G.726 Vocoder
• Individual, Group, Talkgroup, Multiplex Talkgroup and All calls
• Emergency button, Lone Worker and Man Down functions
• Vibration alert function notifies of incoming call
• Text message reception and preprogramed message transmission
• Up to 500 memory address book (including Group, Individual, Talkgroup and Telephone lists)
• Voice message recording
• Built-in Bluetooth® and GPS for monitoring/tracking purposes
Standard Accessories Include:
• BC202IP2 with power supply.
• BP-272 Li-ion battery pack.
• MB-135 belt clip.
• Hand Strap.
• Antenna.
Other Features:
• High quality, clear audio using G.726 Vocoder
• Individual, Group, Talkgroup, Multiplex Talkgroup and All calls
• Emergency button, Lone Worker and Man Down functions
• Vibration alert function notifies of incoming call
• Text message reception and preprogramed message transmission
• Up to 500
• Voice message recording
• Built-in Bluetooth® and GPS for monitoring/tracking purposes
Standard Accessories Include:
• BC202IP2 with power supply.
• BP-272 Li-ion battery pack.
• MB-135 belt clip.
• Hand Strap.
• Antenna.
Specifications
Battery Hours | 16 hours |
---|---|
Channels | Unlimited |
Features | Bluetooth, Caller ID, Emergency Button, GPS, Hands-Free, Over-The-Air-Programming, Scan |
Frequency Type | LTE |
IP Rating | IP67 |
License Required | No |
License Type | License-Free |
Radio Type | Handheld Radio |
Screen Type | Backlit LCD |
Technology Type | 4G/LTE |
Resources
IP503H Leaflet (download) IP503H Manual (download) IP503H Bexleyheath Town Centre Shop Watch Case Study (download)Accessories
-
BP-272 Li-ion Battery Pack 7.4V/1880mAh for ID-31 IP-100H/501H/503H
Purchase£77.99 -
PRO EQUIP-P220LP ICOM Mini PTT with Lock Function and Acoustic Airtube
Purchase£33.59 -
IP501M Mobile Radio LTE/POC (4G) – Inc. SIM & Microphone
Purchase£572.00 Monthly Hire£20.00 -
Klick-Fast stud for IP-503H
Purchase£5.99
