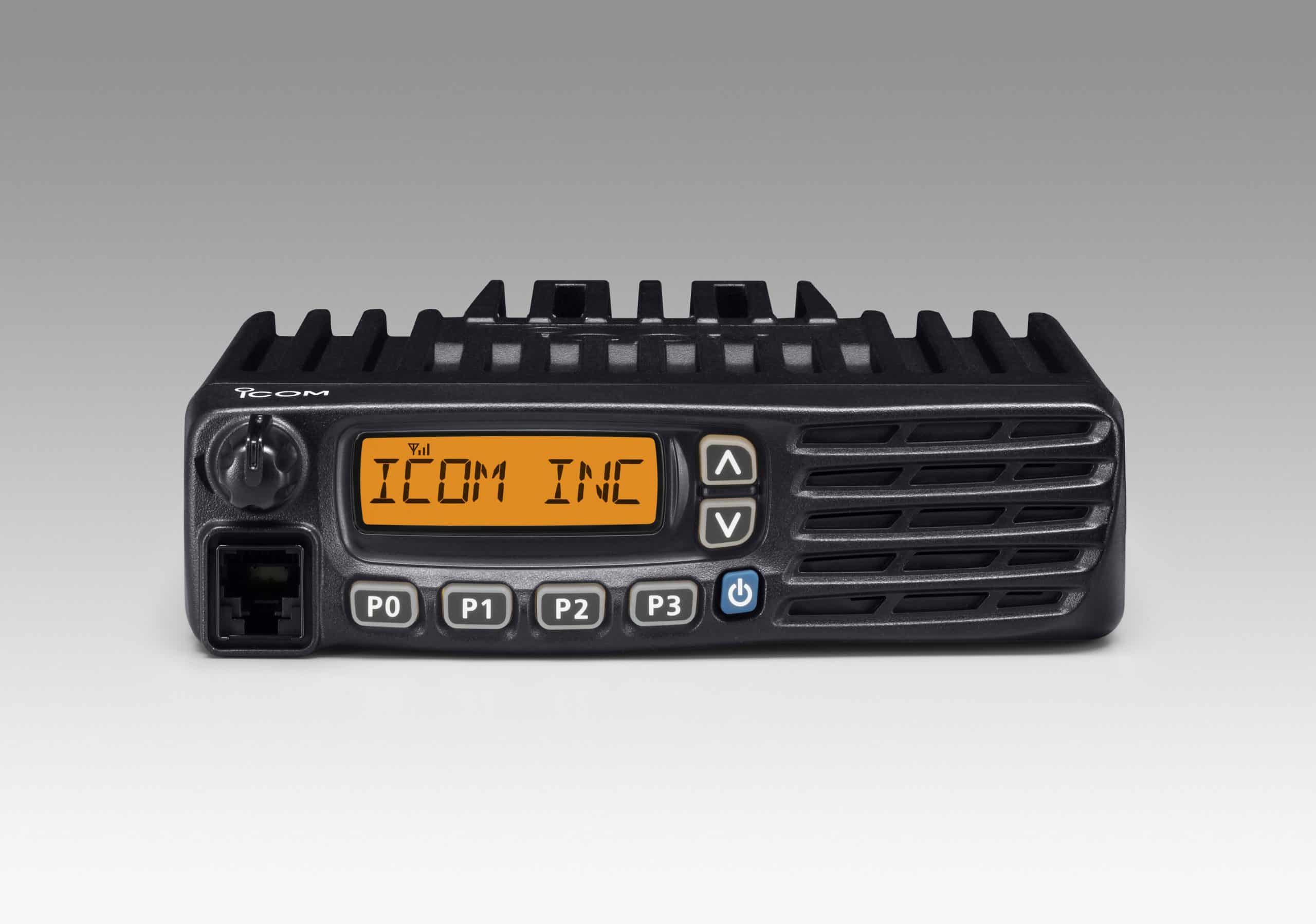

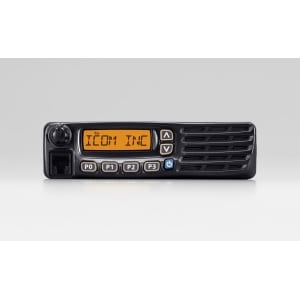

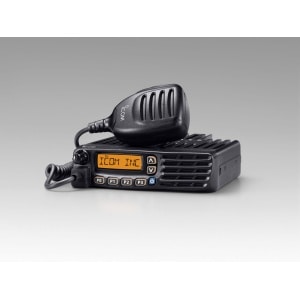

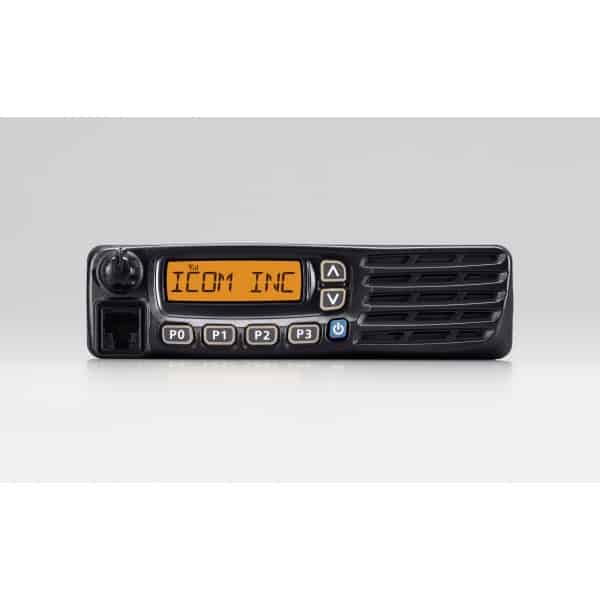

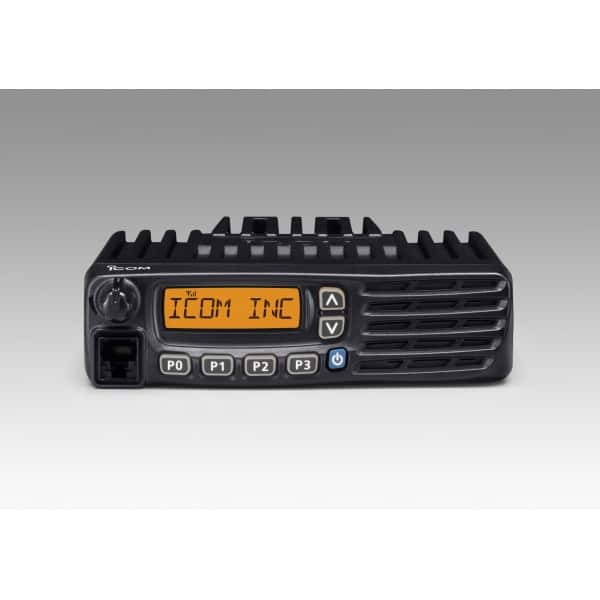

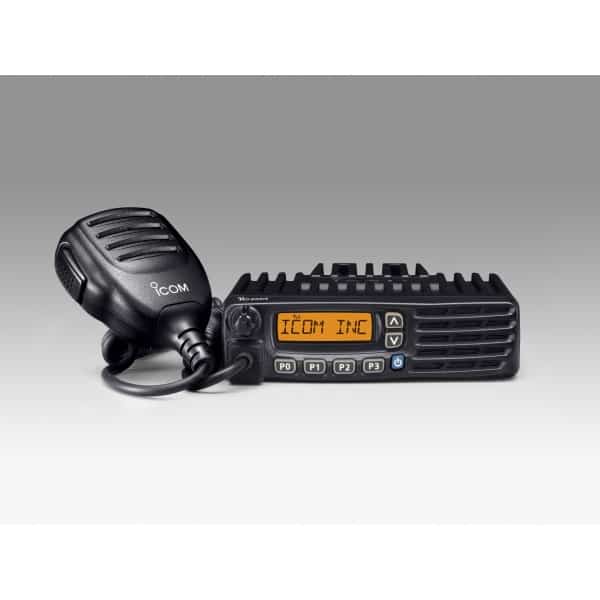

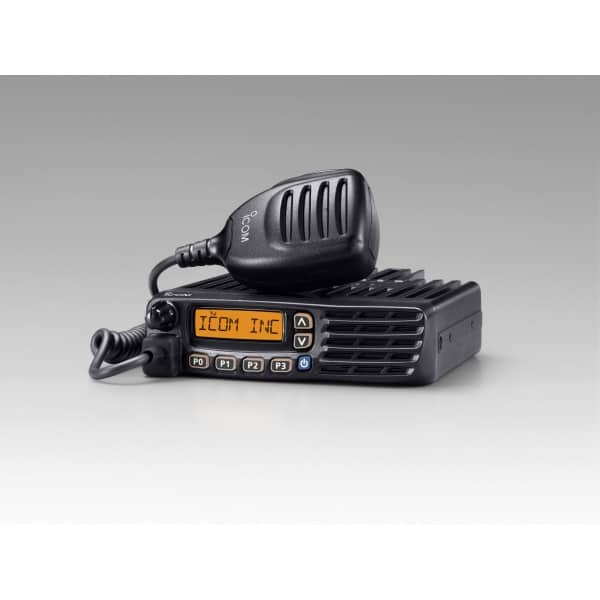

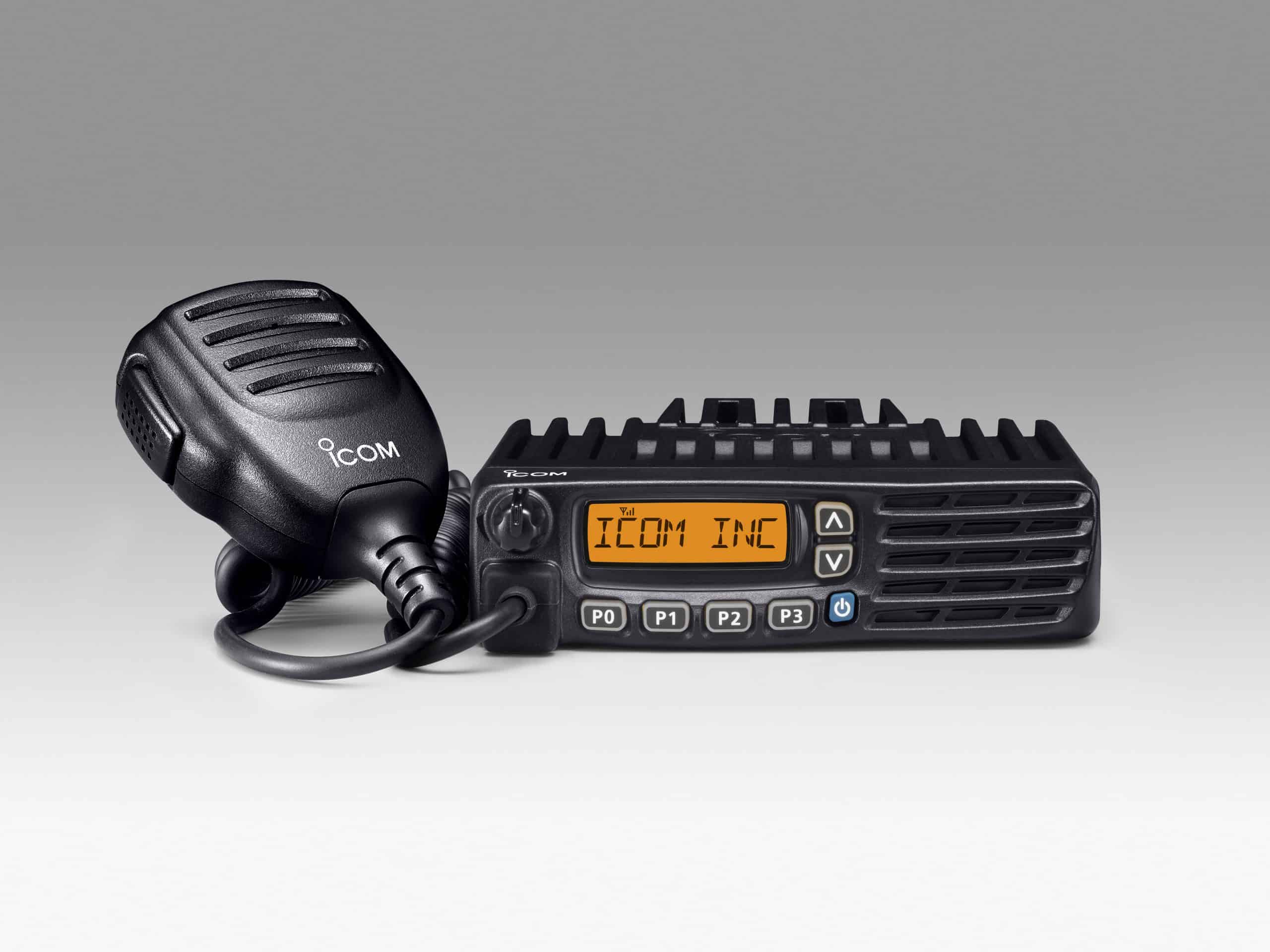

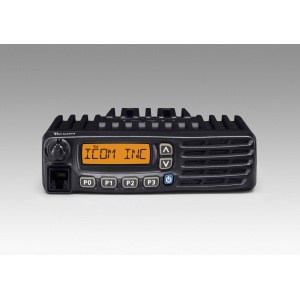

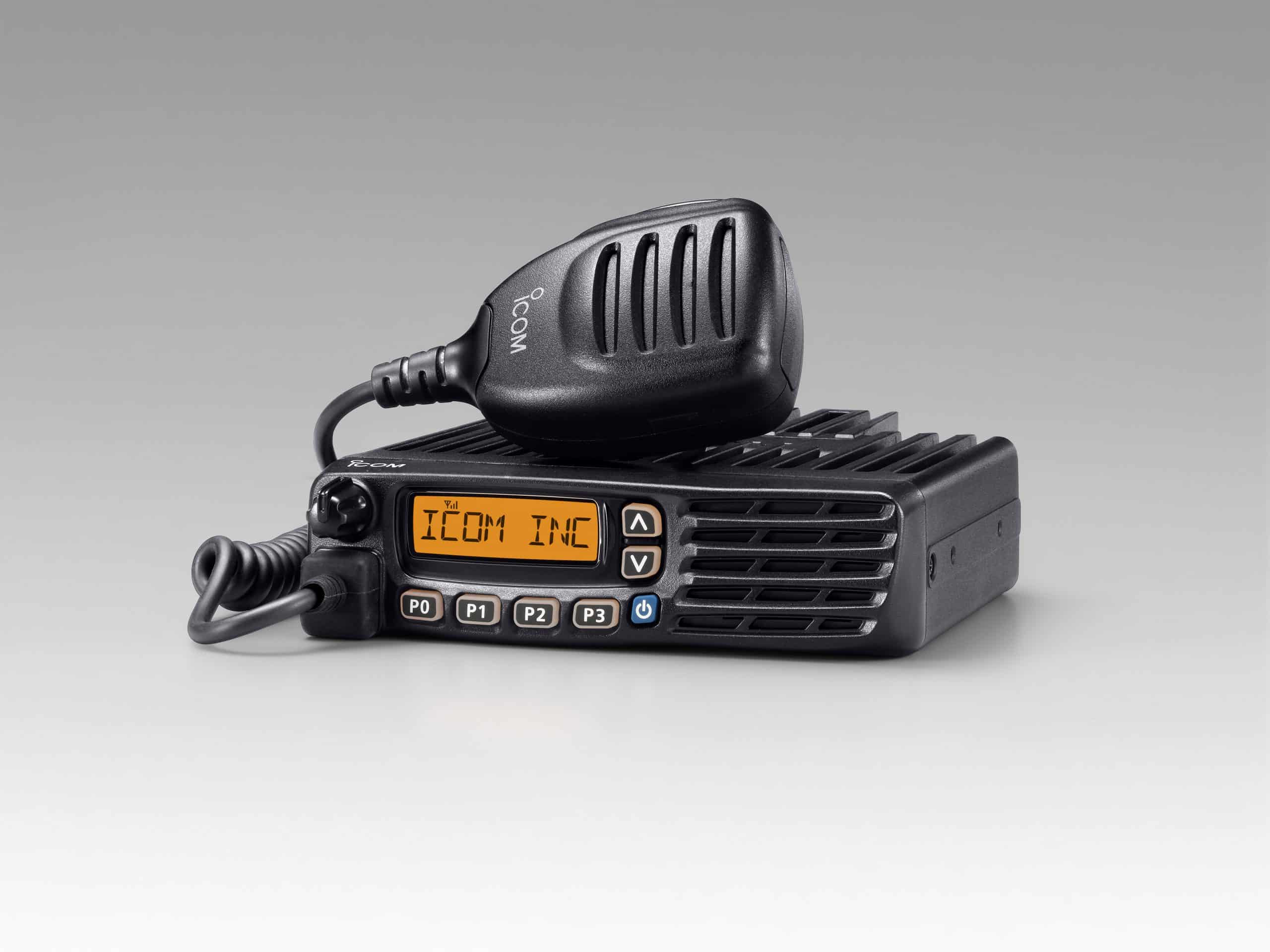

IC-F6122D NXDN UHF IDAS Mobile Radio Inc. HM-152 Mic
*Please call us on 01202 677297 prior to purchasing if you need programming to your frequencies or assistance with Ofcom Licensing.*
Entry Level IDAS Digital Mobile Two Way Radio capable of multi-site conventional and single-site trunking
The IC-F5122D series provides basic operation in IDAS digital two way radio mode. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking.
External GPS receiver connection with optional OPC-2078 ACC cable
The new optional OPC-2078 is a D-SUB 25-pin ACC cable can connect with an external GPS receiver or PC connection. An optional OPC-1939 D-SUB 15-pin ACC cable is also available with the IC-F5122D series.
Max. 128 memory channels and 8 memory zones
The IC-F5122D series has 128 memory channels (Max.) with 8 zones. Memory channel selection can be easily selected with the up/down buttons.

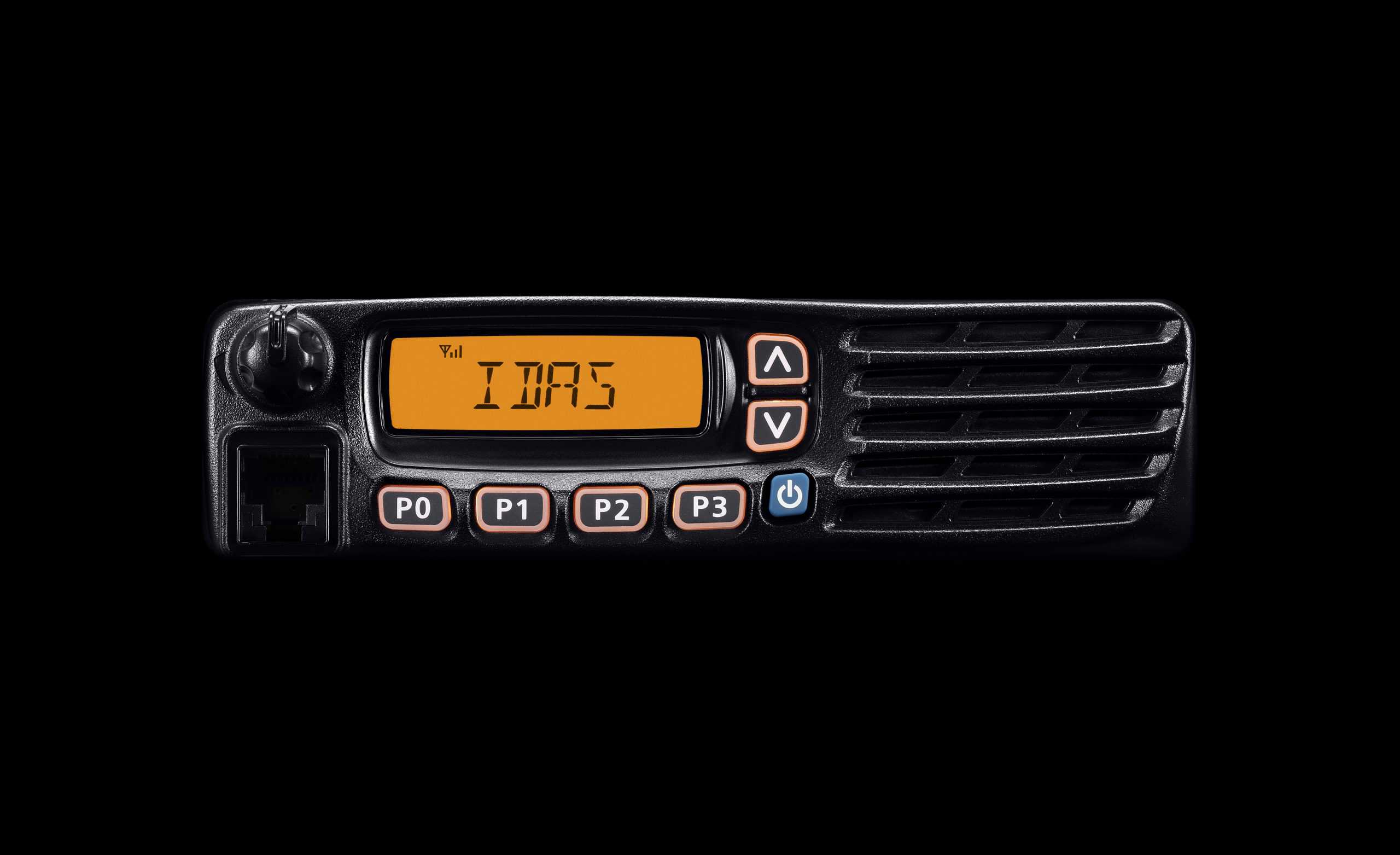

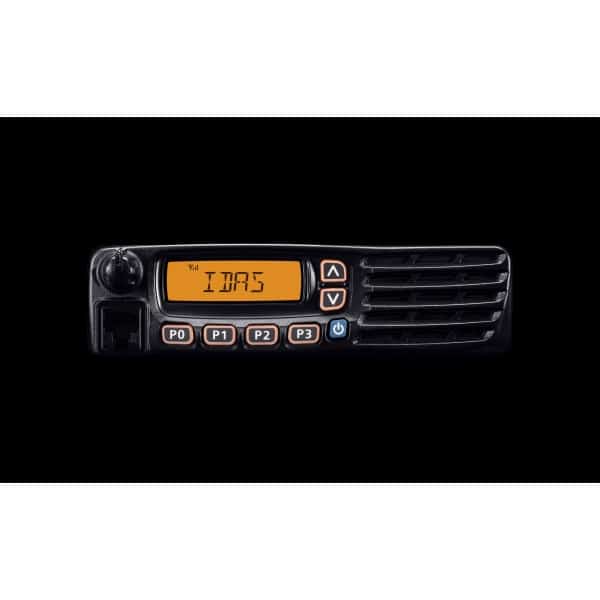

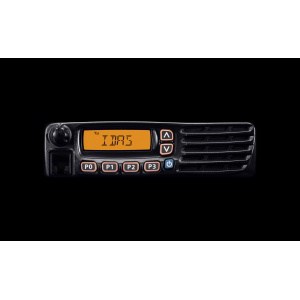

Alphanumeric LCD
The IC-F5122D mobile series has an easy to read an 8-character 14 segment alphanumeric LCD. The “ ” icon on the upper right of the display shows the scanning is activated.
4W (typical) front mounted loud speaker
The IC-F5122D two way mobile series has a 4W (typical) front mounted speaker which can be clearly heard during operation.
Multi 5-tone function built-in
The IC-F5122D series has built-in 5-Tone, CTCSS and DTCS signalling capabilities for group communication. The IC-F5122D series can decode up to eight 5-tone codes on a channel. The following actions are programmable to respond to each tone.
• Beep sound
• Bell icon
• Answer back call • Auto TX
• Stun, kill revive
• Scanning
• External output*
* External device connection such as a horn honk, buzzer, etc is required.
Talk back function and call mode selection
When the talk back function is enabled, the IC-F5122D series automatically selects the received channel and talkgroup or individual ID (IDAS digital mode) to reply to the received call, while scanning stops or resumes after a preset time. The talk back timer beep alerts you of the end of the talk back time with a beep sound. The user can easily make a quick response with this function.
Other features
• BIIS PTT ID transmission
• 8 DTMF autodial memories
• ±1.0ppm frequency stability both in VHF and UHF
• Common programming software with IC-F3102D series
Product Details
- IDAS conventional and IDAS single-site trunking compatible
- Digital functionality built-in…no digital option board required
- Max. 128 channel memory channels with 8 zones
- 8 character alphanumeric display
- Multiple analogue signalling modes built-in 5-Tone, CTCSS, DTCS, MDC 1200* and BIIS 1200* (* Limited functions only)
- 4W (typ.) front mounted speaker and independent volume knob
- Talk back function and call mode selection
- Optional OPC-2078 D-SUB 25-pin ACC cable for GPS receiver connection
- MIL-STD-810-F rugged body
- 2 year warranty on transceiver, 1 year warranty on accessories
- IDAS conventional and IDAS single-site trunking compatible
- Digital functionality built-in…no digital option board required
- Max. 128 channel memory channels with 8 zones
- 8 character alphanumeric display
- Multiple analogue signalling modes built-in 5-Tone, CTCSS, DTCS, MDC 1200* and BIIS 1200*
Specifications
| Channels | 128 channels |
|---|---|
| Features | Caller ID, Channel Anouncement, Emergency Button, PC Programmable, Radio Stun/Revive/Kill, Scan |
| Frequency Type | UHF |
| License Required | Yes |
| License Type | Licensed |
| Radio Type | Mobile Radio |
| Screen Type | Backlit LCD |
| Technology Type | Digital |
